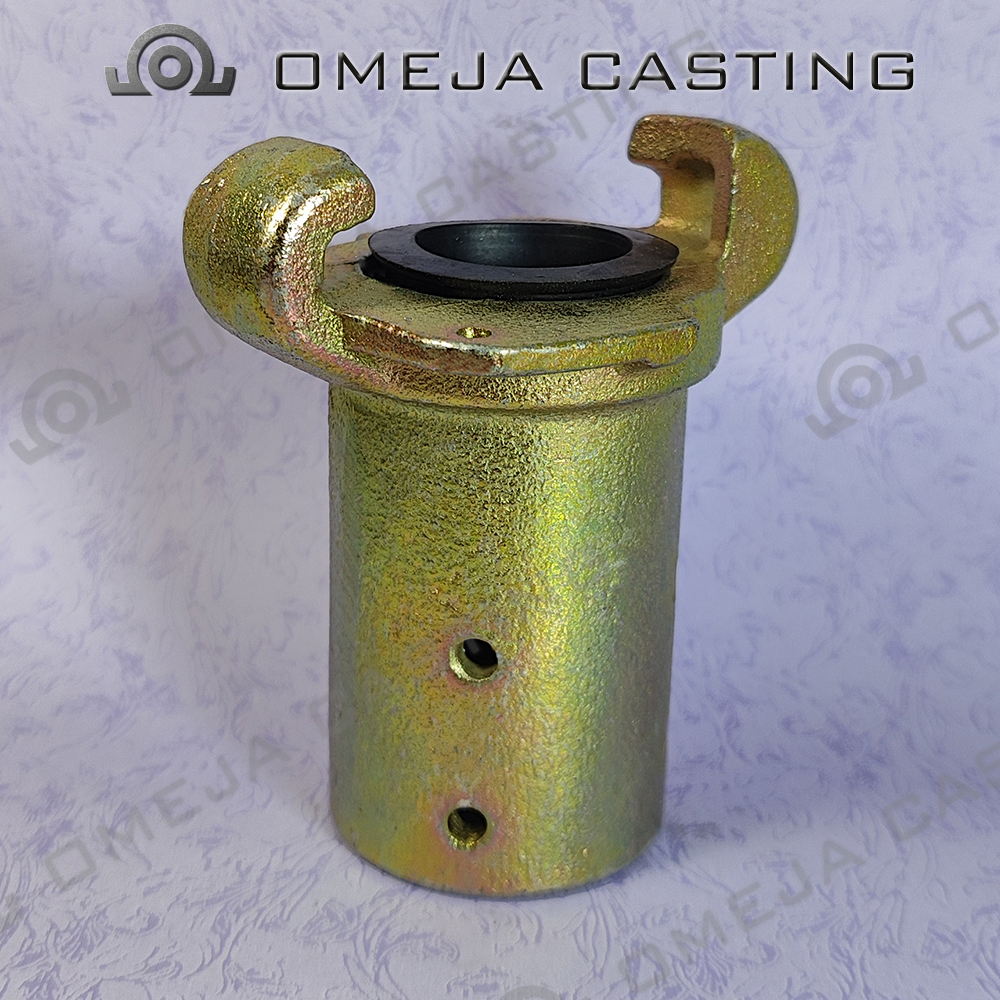

Sandblast Hose Coupling

The product is suitable for the connection between pipes of all sandblasting

equipment.Insert the sandblasting tube into the product, and screw it in

from the small hole of the product with high-strength screws, so that the

sandblasting tube and the product are closely connected.

Connections are made by pushing two heads together and turning one

quarter turn in a clockwise direction. When this is done and the heads have

seated properly, the small holes through the flange on the side of each

coupling head will line up. An Air King Safety Clip should be inserted at this

point to assure the Sandblast Hose Coupling will not become accidentally

disconnected. If a Safety Clip is not available, insert a cotter pin or wire type

retainer through the holes. The fitting is now ready to be put into service.
